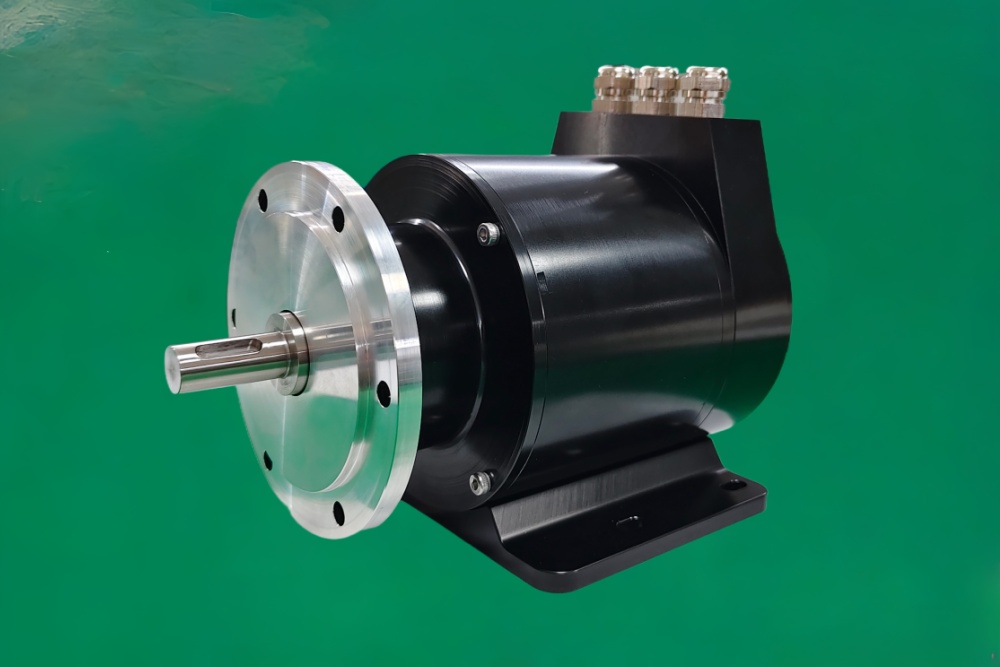

This OEM replacement for the DAF58-12B18 is developed as a customized 1:1 alternative, accurately matching the original 4–20 mA absolute output and mechanical mounting interface. The design allows direct installation into existing systems without electrical recalibration or mechanical modification. By leveraging a flexible non-standard production process, this solution helps reduce replacement cost while significantly shortening lead time, with delivery typically completed within 15 working days.
The replacement encoder is optimized for stable current-loop transmission, ensuring reliable absolute position feedback over long cable distances and in environments with electromagnetic interference. Performance remains consistent under continuous operation, supporting long-term system accuracy. Low-volume and application-specific customization can be accommodated, making this OEM replacement suitable for automated material handling, assembly machinery, and process control systems that require fast availability, compatibility, and dependable analog feedback.
Electrical data
| Parameter | Value |
| Valid for all versions | Unless otherwise stated |
| Sensor system: | GaAIAs diode, photo-transistor array, precision comparator |
| Setting cycles EEPROM: | ≥10^6 |
| Multifunctional inputs (MFP): | Depending on adjusting mode (signal input E6) |
| Memory circuit (latch): | Through MFP |
| Disc coding: | Gray code |
| Signal sense: | CW or CCW (signal input E6) |
| Supply voltage range V_s: | +20 to +26 VDC, 15±0.5VDC(optional) |
| Supply current I_s: | 80 mA typ. / 120 mA max. (when output current = 0) |
| Linearity: | 0.025% typ. / 0.05% max. (+2 LSB), 12 Bit monotory warranted |
| Temperature drift: | 0.0015% / K typ. |
| Current output | |
| Accuracy | |
| at starting point 0 mA: | 0 mA ±5 μA typ. / ±15 μA max. |
| at end point 4 mA: | 4 mA ±5 μA typ. / ±15 μA max. |
| Load resistance: | 0 to 500Ω at V_s = 20 to 26 VDC, 0 to 1000Ω at V_s = 22 to 26 VDC |
| Voltage output | |
| Accuracy | |
| at starting point 0 V: | 0 V ±2.5 mV typ. / ±7.5 mV max. |
| at end point 10 V: | 10 V ±2.5 mV typ. / ±7.5 mV max. |
| Output current: | 5 mA max. When load resistance > 2 kΩ (short circuit proof) |
