RSA 507 825860-01 Absolute encoder CANopen
Ruggedized Shaft encoder, Absolute
- Single turn
- Robust design
- Shock and vibration protected

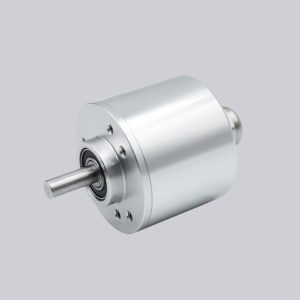

We provide 825860-01 encoder replacement solutions, the use of non-standard form for the production of alternative products, the application parameters of all 1:1. Perfect replacement of the prototype encoder, to solve the procurement and other challenges. The picture is the real photo of the replacement solution.
RSA507-825860-01 Encoder Specifications
Encoder Configuration
| Attribute | Details |
|---|---|
| Type | RSA |
| Model | 507 Singleturn |
| Shaft Type | Ø10 mm with partial flat |
| Flange Type | Clamping flange (61-type) |
| Power Supply | 9-36 Vdc |
| Output Interface | CANopen |
| Absolute Resolution | 13 bit singleturn |
| Connection Type | Cable |
| Connecting Direction | Axial |
| Cable Length | 1.50 m |
Mechanical Data
| Attribute | Details |
|---|---|
| Operating Temperature | -40 °C…+80 °C |
| Ingress Protection Class | IP67/IP66 (Encoder body/Shaft inlet) |
| Vibration | ≤ 300 m/s² |
| Shock | ≤ 2000 m/s² |
| Shaft Load (axial/radial) | 50 N / 60 N |
| Rotational Speed Max | 6000 rpm |
| Shaft Material | Stainless steel |
| Cover Material | Aluminium (Anodized) |
| Weight | 300 g |
Electrical Data
| Attribute | Details |
|---|---|
| Polarity Protected | Yes |
| Short Circuit Protected Outputs | Yes |
| Current Consumption (No load) | 100 mA at 24 Vdc |
| Absolute Accuracy | ±1 LSB |
| Supported Profile | Encoder profile DS406 v2 |
| Node Address | Hardware or software adjustable |
| Code Type | Binary |
| Baud Rate | Max. 1 Mbit/s (Default 125 kBaud) |
