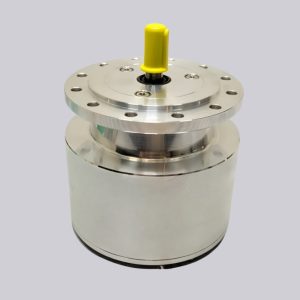

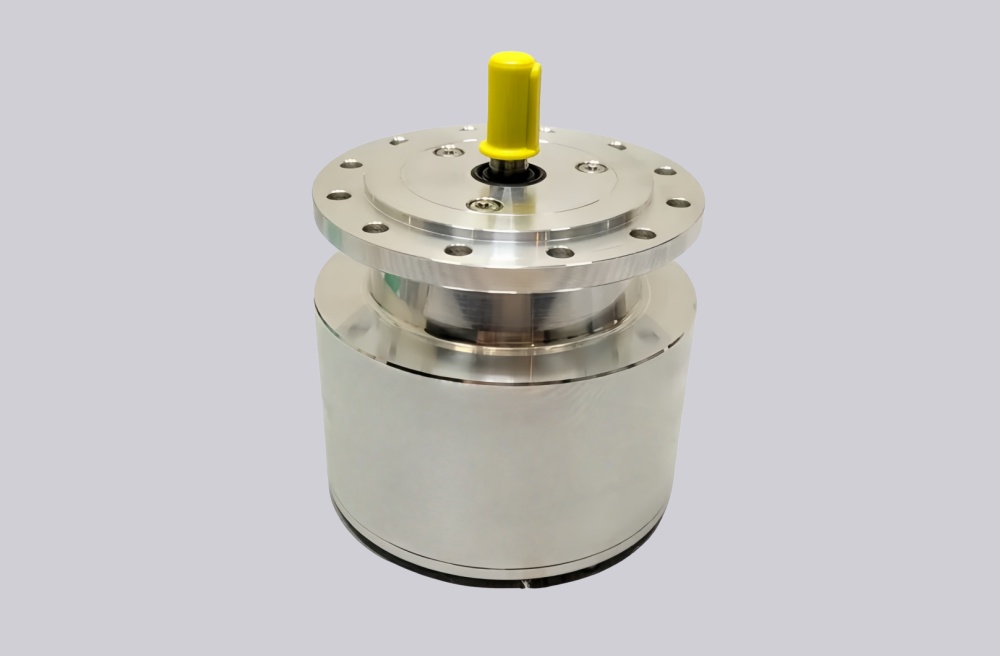

FGHJ2AK-1024G-90G-NG/16K Incremental Encoder Solution

A custom compatible encoder solution can be provided for the FGHJ2AK-1024G-90G-NG/16K for maintenance, retrofit, replacement, and upgrade work. This model can be supported with project-matched mechanical and electrical compatibility, and the usual production lead time for a custom solution is 10–15 working days.

Technical Overview of the FGHJ2AK-1024G-90G-NG/16K Encoder

The FGHJ2AK-1024G-90G-NG/16K is an incremental encoder configuration built around a hollow-shaft mechanical structure with a 1024 ppr signal format. Based on the series configuration, this version uses a single-system arrangement with terminal strip connection, making it suitable for installations where secure field wiring and service access are important. The hollow shaft code “16K” indicates a cylindrical 16 mm bore, which is a key mechanical identifier for replacement engineering.

From the series platform perspective, this encoder family is designed for 12–30 V DC supply, with HTL signal output as the standard configuration and optional TTL availability where required by the control side. The series also supports operation in industrial environments that require IP66 protection, stable incremental feedback, and resistance to vibration, shock, and temperature variation.

Industrial Integration Considerations

For this 16 mm hollow-shaft version, shaft fit and torque support arrangement should be checked first during integration. The shaft tolerance, clamping method, anti-rotation support, and the condition of the driven shaft all influence long-term signal stability. Because this model uses terminal strip connection, cable routing, shielding continuity, and grounding practice should also be reviewed before commissioning.

In retrofit projects, attention should be given to the existing mounting envelope, axial clearance, shaft insertion depth, and the relationship between encoder housing orientation and cable outlet direction. Controller input compatibility should also be verified, especially where the original system expects specific pulse levels, channel phase relationships, or reference pulse behavior.

Custom Compatible Encoder Solution

For the FGHJ2AK-1024G-90G-NG/16K, a custom compatible encoder solution can be engineered to match the original installation concept as closely as possible. The compatible solution can be configured around the required hollow shaft size, mounting arrangement, terminal connection method, pulse count, output level, and signal format so that field modification is minimized.

Where the original unit is difficult to source or where lead time creates maintenance risk, a project-specific compatible version can be developed to preserve the existing wiring logic and mechanical interface. This approach is especially useful for maintenance teams that need predictable replacement work without redesigning the full feedback section of the drive system.

Lead Time and Custom Development

Typical production lead time: 10–15 working days.

Before production, the engineering review should confirm the hollow shaft diameter, shaft fixing method, housing arrangement, electrical output requirements, terminal layout expectations, and installation conditions. If the application involves vibration, heavy-duty drive service, or restricted mounting space, those conditions should also be checked in advance so the compatible solution can be aligned with site requirements.

Typical Technical Parameters
