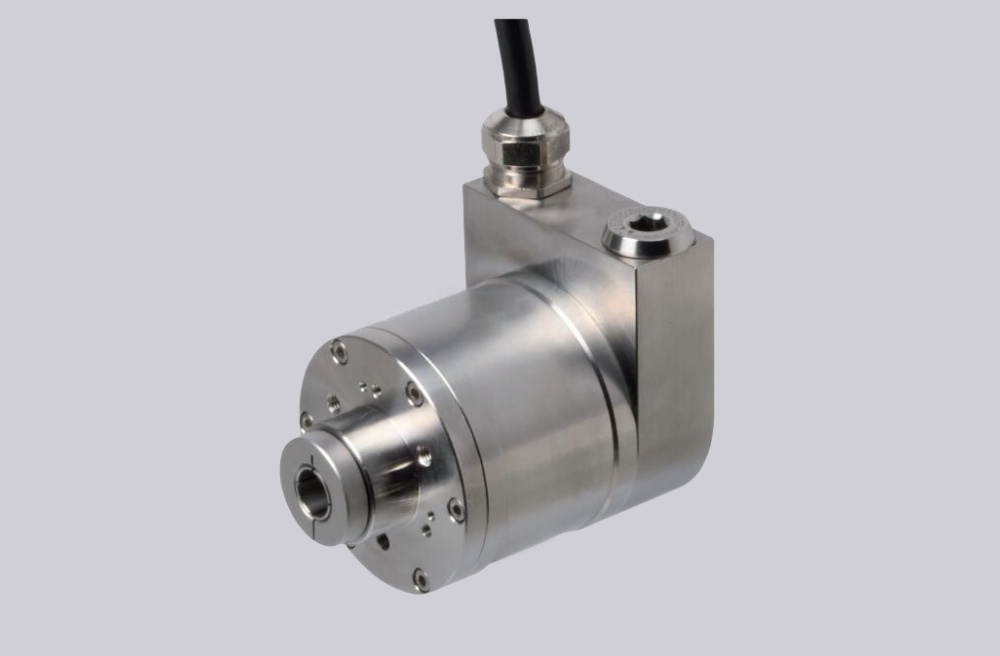

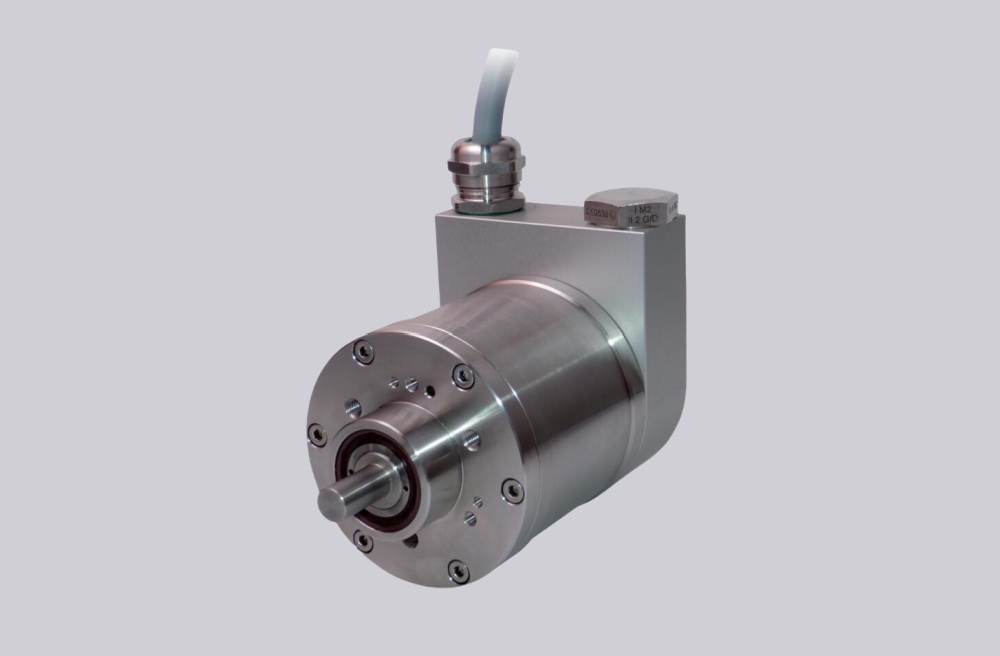

This SSI multiturn absolute rotary encoder is engineered as a precise 1:1 replacement for the AVS78E-022K2A0GN-0012 model, designed to match original mechanical dimensions, flange interface, and SSI communication specifications. It delivers reliable high-resolution absolute position feedback with multiturn capability, ensuring accurate positional data retention even through power interruptions — essential for automation, motion control, and precision positioning systems. The rugged construction supports stable performance in demanding industrial environments and enables seamless integration into existing control architectures without requiring structural modifications.
To support tight project timelines and minimize equipment downtime, this encoder solution offers a short lead time of approximately 10–15 working days, including customized configuration options. Key parameters such as SSI communication settings, resolution, operating voltage range, and connector type can be precisely matched to your system requirements. This 1:1 replacement approach simplifies procurement, enhances supply chain flexibility, and ensures dependable long-term performance for both retrofit maintenance and new industrial installations.
Technical Data for Singleturn Absolute Rotary Encoder AVS78E
General Specifications
Attribute
Details
Detection Type
Photoelectric Sampling
Device Type
Singleturn Absolute Rotary Encoder
Functional Safety
MTTFd: 210 a, L10: 7.7 E+9 at 3000 rpm
Operating Voltage (U_B)
10 … 30 V DC
No-load Supply Current (I_0)
max. 90 mA
Linearity
± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0.5 LSB at 12 Bit
