HOG161 DN 1024 I 75H7 Baumer Incremental encoders
Robust light-metal housing
Through hollow shaft up to ø75 mm/Output stage HTL or TTL/Output stage TTL with regulator UB 9…26 VDC
Special protection against corrosion/Large terminal box, turn by 180°

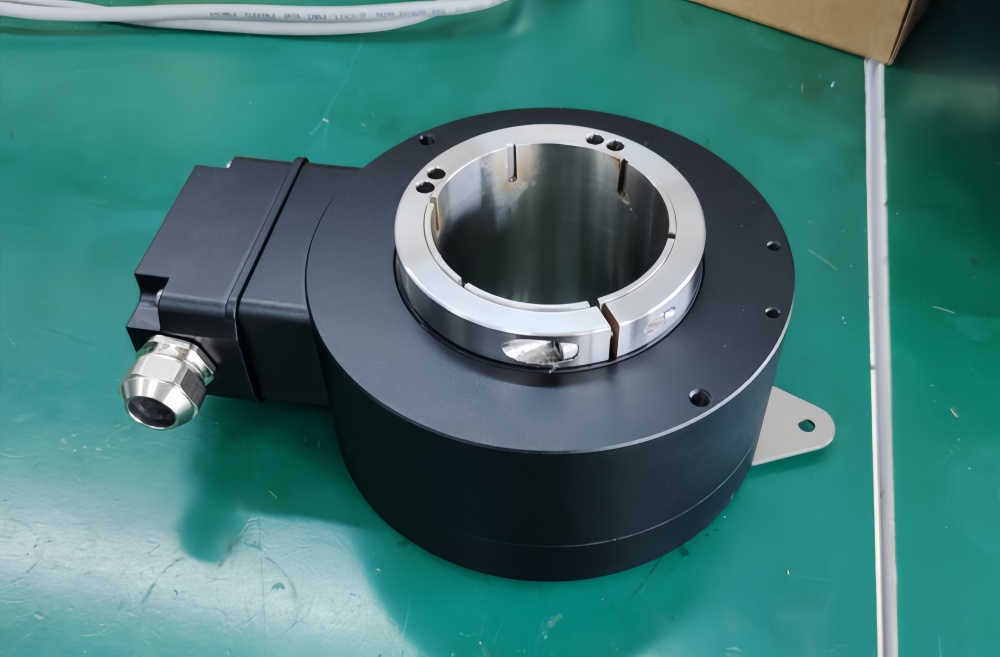

We provide HOG161 DN 1024 I 75H7 encoder replacement solutions, the use of non-standard form for the production of alternative products, the application parameters of all 1:1. Perfect replacement of the prototype encoder, to solve the procurement and other challenges. The picture is the real photo of the replacement solution.
Technical data - electrical ratings
| Voltage supply | 9..30 VDC 5VDC+5% 9...26 VDC |
|---|---|
| Consumption w/o load | ≤100mA |
| Pulses per revolution | 250....2500 |
| Phase shift | 90°+20° |
| Duty cycle | 40...60% |
| Reference signal | Zero pulse,width 90° |
| Sensing method | Optical |
| Output frequency | S120 kHz |
| Output signals | K1,K2,KO+inverted |
| Output stages | HTL TTL/RS422 |
| Interference immunity | EN61000-6-2 |
| Emitted interference | EN61000-6-3 |
| Approval | CE UL approval/E217823 |
Technical data - mechanical design
| Protection EN 60529 | IP54 |
|---|---|
| Operating speed | S6000 rpm (mechanical) |
| Operating torque typ. | 15 Ncm |
| Rotor moment of inertia | 26.3 kgcm2(48) 13.5 kgcm2(75) |
| Material | Housing: aluminium alloy Shaft: stainless steel |
| Operating temperature | -40..+85℃ |
| Resistance | IEC 60068-2-6 Vibration 10g, 10-2000 Hz IEC 60068-2-27 Shock 100 g,6ms |
| Corrosion protection | IEC 60068-2-52 Salt mist for ambient conditions C4 according to ISO12944-2 |
| Explosion protection | I13G Ex ec IIC T4 Gc (gas) I1 3 D Extc II T10C Dc(dust) (only with option ATEX) |
| Connection | Terminal box 2x terminal box (with option M) |
| Weight approx. | 4.5kg (048) 3.2kg(075) 3.6 kg (o75 with option M) |
