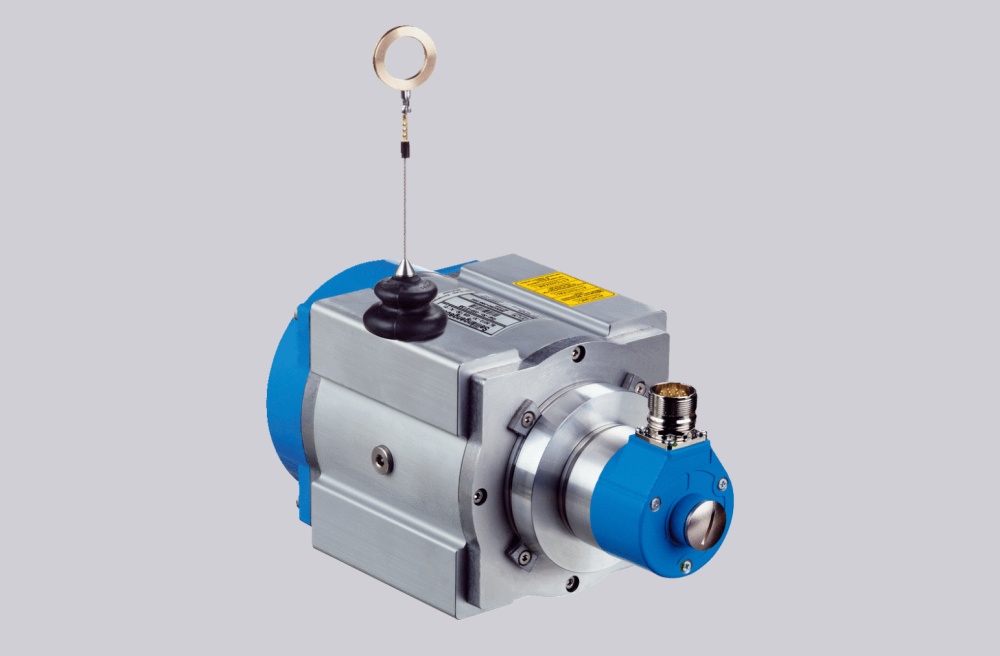

BTF13-A1AM1020 Wire Draw Encoders, HighLine, Absolute, 0m-10m, SSI

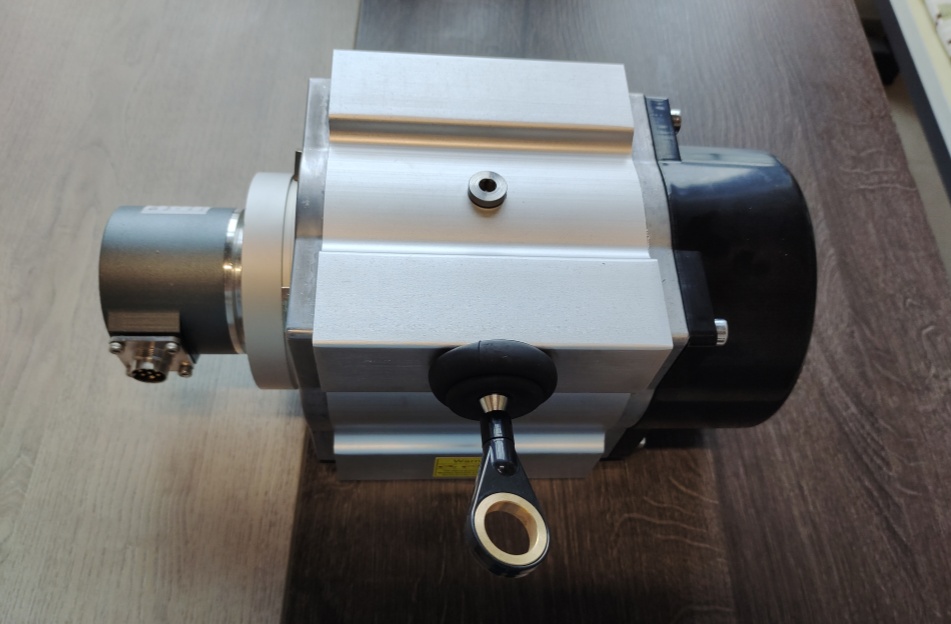

We provide BTF13-A1AM1020 encoder replacement solutions, the use of non-standard form for the production of alternative products, the application parameters of all 1:1. Perfect replacement of the prototype encoder, to solve the procurement and other challenges. The picture is the real photo of the replacement solution.

BTF13-A1AM1020 Wire Draw Encoders, HighLine, Absolute, 0m-10m, SSI-EncoderWorks
BTF13-A1AM1020 Wire Draw Encoders, HighLine, Absolute, 0m-10m, SSI-EncoderWorks

BTF13-A1AM1020 HighLine WIRE DRAW ENCODERS - Detailed Technical Data

Performance

Measurement range0m...10 m
EncoderAbsolute encoders
Resolution (wire draw +encoder)0.05 mm
RepeatabilityS 1.5 mm
Linearity<±2mm
Hysteresis<3 mm

Interfaces

Communication interface
Programmable/configurable

Electronics

Connection typeMale connector, M23,12-pin, radial
Supply voltage10V...32V
Power consumptions 0.8w (without load)

Mechanics

Weight4kg
Measuring wire materialHighly flexible stranded steel 1,4401 stainless steel V4A
Measuring wire diameter1.35 mm
Weight (measuring wire)7.1g/m
Housing material,wire draw mechanismAluminum (anodised),plastic
Spring return force10N...20 N
Length of wire puled out per revolution332.4mm
Life of wire draw mechanismTyp.1,000,00 ccles
Actual wire draw length10.2m
Wire acceleration40m/s2
Operating speed8m/s
Mounted encoderATM60 SSI, ATM60-A1AO-K19,1034294
Mounted mechanicMRA-F130-110D2,6028627

Ambient data

EMCAccording to EN 61000-6-2 and EN61000-6-3
Enclosure ratingIP64, mounted mechanic
Operating temperature range20°C...+70°C
