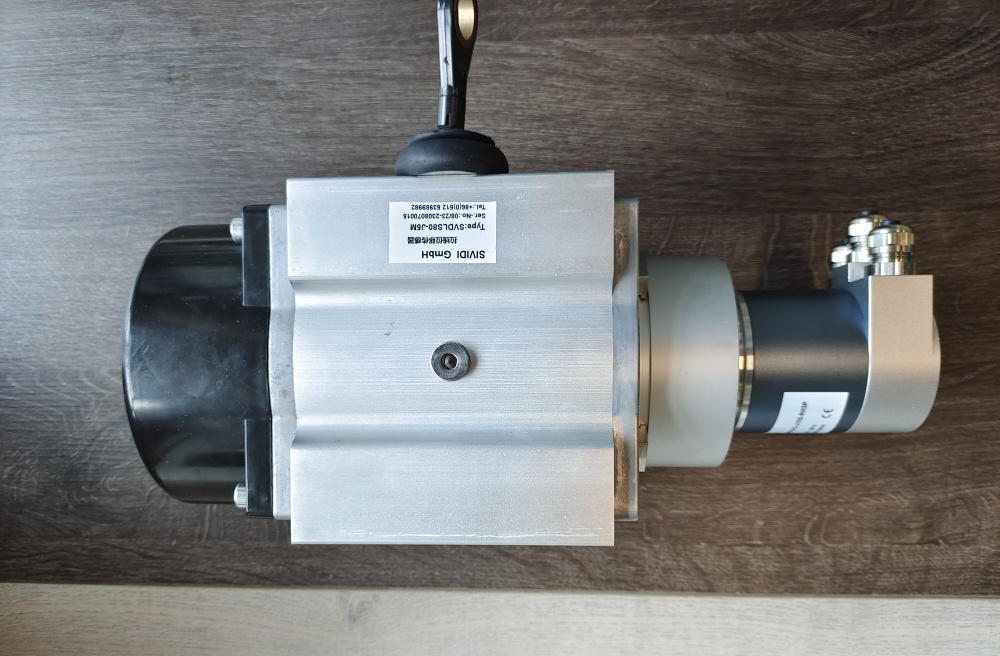

We provide BTF13-I1BM3099 encoder replacement solutions, the use of non-standard form for the production of alternative products, the application parameters of all 1:1. Perfect replacement of the prototype encoder, to solve the procurement and other challenges. The picture is the real photo of the replacement solution.

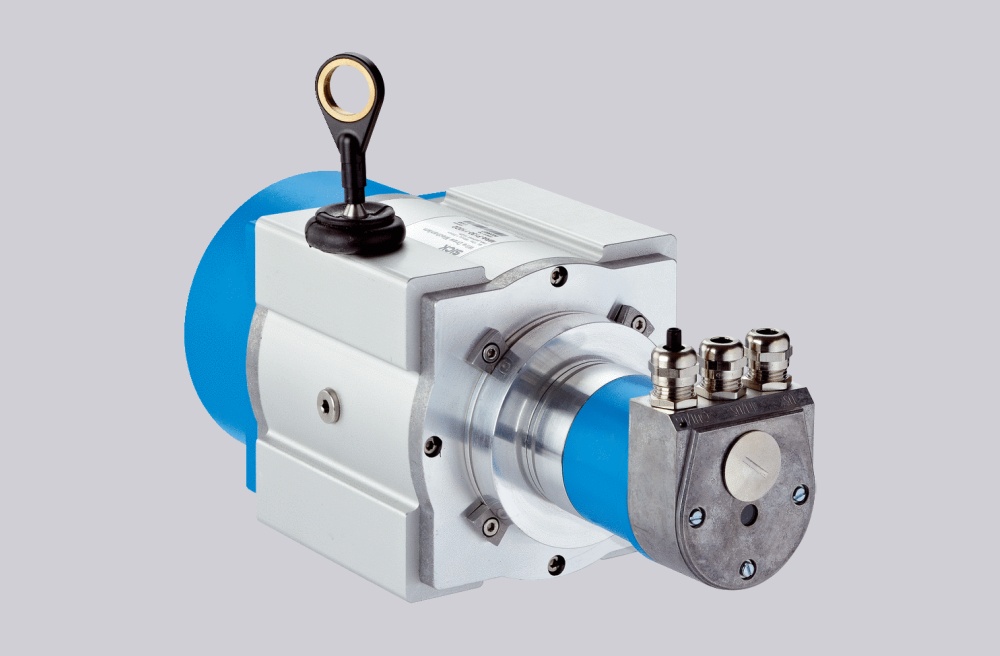

BTF13-I1BM3099 | HighLine WIRE DRAW ENCODERS
Performance
Measurement range
0m...30 m
Encoder
Absolute encoders
Resolution (wire draw+encoder)
0.001mm
Repeatability
<2 mm
Linearity
<±2mm
Hysteresis
<5mm
Interfaces
Communication interface
EtherNet/IPTM
Programmable/configurable
Electronics
Connection type
Male connector, 1x, M12,4-pin,axial Female connector, 2x, M12,4-pin,axial
