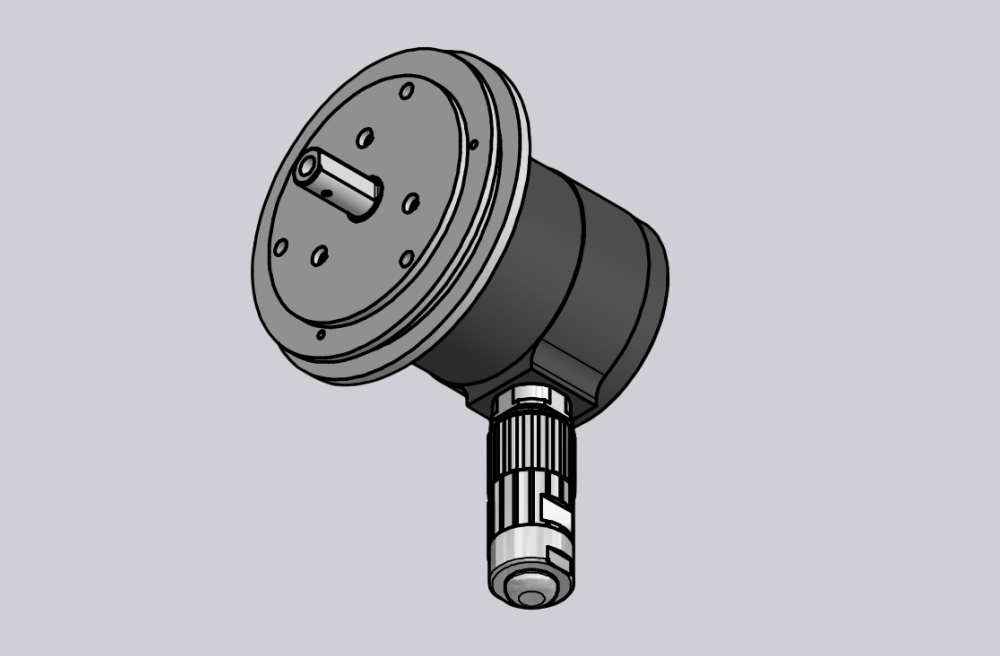

CEV65M-10736 CEV65M*4096/4096 SSI 80ZB12FL24 Absolute rotary Encoder(Replacement model)
We provide CEV65M-10736 encoder replacement solutions, the use of non-standard form for the production of alternative products, the application parameters of all 1:1. Perfect replacement of the prototype encoder, to solve the procurement and other challenges.


| Parameter | Specification |
|---|---|
| No. of Steps/Rev | 4,096,000 |
| No. of Revolutions | 4,096,000 |
| Parameterizable Prog. | Yes |
| Interface | SSI |
| Code | Programmable |
| Supply Voltage | 11–27V |
| Output Level | RS422 |
| Protection Class | IP65 |
| Operating Temperature | -40 to +70°C |
| Flange Type | ZB80 |
| Shaft Type | 12FL/24 |
| Connector Type | Contact 12P |
| Connector Position | Connector radial on housing |
| Pinout | No. ST974A |
| Mating Plug | Yes |
| Options ENC F/R | Yes |
| Options ENC Heater | Yes |
| Options ENC Low Temp | Yes (Low Temperature Bearing Unit) |
| Options ENC Preset 1 | Yes |

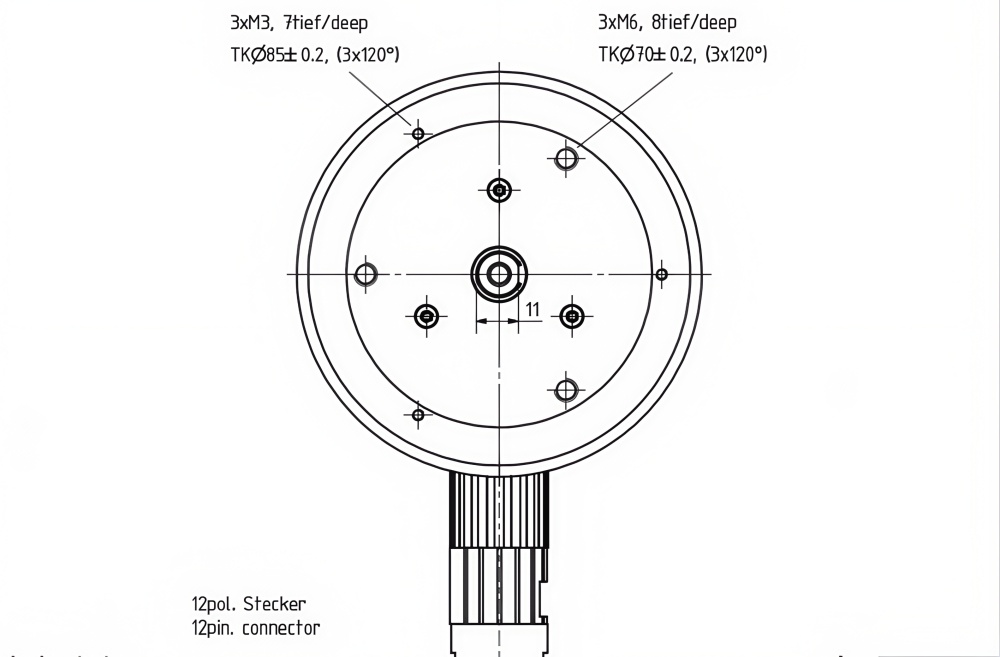

| Drawing No. | 04-CEV65M-M0457 |
| Version No. | 158 |
| Parameter File | CE831-095 |
| Firmware No. | 437860 |
| Documentation No. | DOKUMENTE |
| AL | N |
| ECCN | N |
