HE65M*4096/4096 SSI ( HEV65M-00200) Encoder Order No.:205-00200

I'm MaxLee
5 months前
HE65M*4096/4096 SSI ( HEV65M-00200) Encoder Order No.:205-00200-I'm MaxLee

HE65M*4096/4096 SSI ( HEV65M-00200) Encoder Order No.:205-00200

We can customize the production of encoder products with the same parameters, communication protocol: profinet. 1:1 customized replacement products.

Technical Data

ParameterSpecification
Order No.205-00200
Date13.5.2023
Number of Steps/Rev4,096,000
Number of Revolutions4,096,000
InterfaceSSI
CodeGray
Supply Voltage11-35V
Output LevelRS422
Protection ClassIP65
Operating Temperature0-60°C
Flange TypeZB50
Shaft Type10KEYWAY/19,5
Connector TypeSUBD 9P
Connector-PositionPG RADIAL
Cable Length (m)5,000
Pinout No.ST1364E
Mating Plug No.
Options ENC Default ValueCA.600000 HEX
Options ENC ParityEVEN

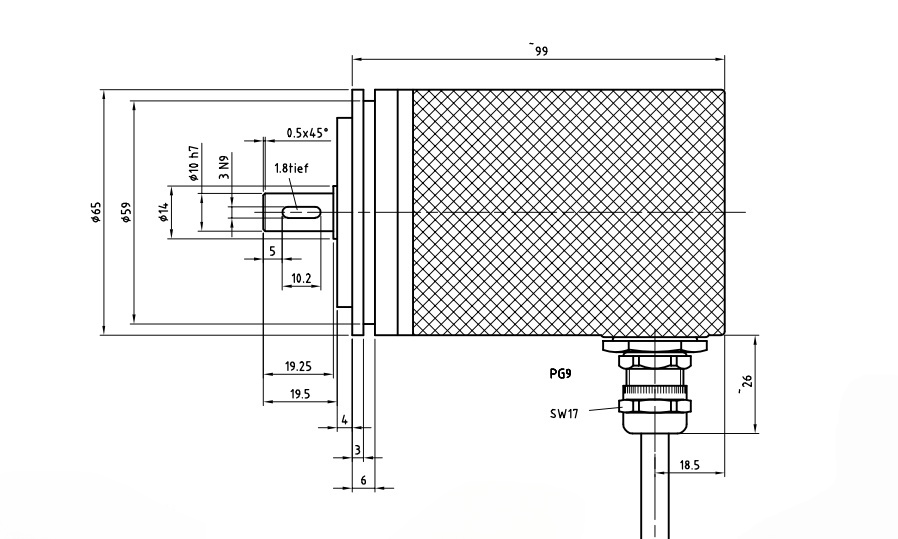

Drawing No.04-400-256
Version No.158
Firmware No.437860
Parameter File205-00200
Documentation No.DOKUMENTE
ALN
ECCNN
Pin Assignment Number1364

Pin Assignment

PinDesignationDescriptionColour
1SSI_DATA+_OUTData output +
2SSI_DATA-_OUTData output
3SSI_Clock+_INClock input +
4SSI_Clock-_INClock input
5not connected
6not connected
7not connected
8Supply Voltage INSupply voltage
9Ground INGround
