751533-02-Leine Linde XHI 861108456-1024

  • Performance hollow shaft encoder for heavy duty industries
  • High vibration and shock resistance
  • Electrically insulated shaft

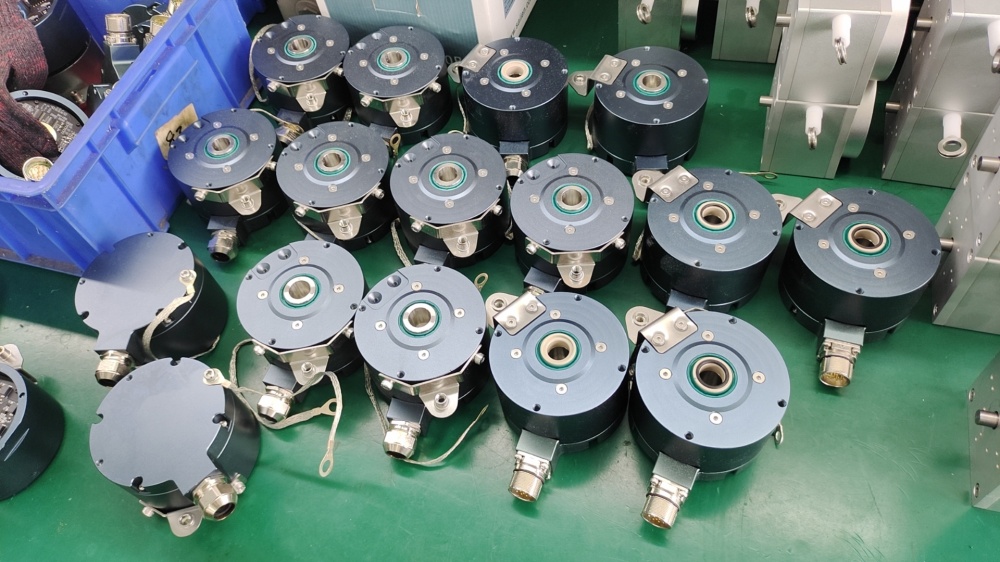

We provide 751533-02 encoder replacement solutions, the use of non-standard form for the production of alternative products, the application parameters of all 1:1. Perfect replacement of the prototype encoder, to solve the procurement and other challenges. The picture is the real photo of the replacement solution.

751533-02-Leine Linde XHI 861108456-1024-EncoderWorks
751533-02-Leine Linde XHI 861108456-1024-EncoderWorks

Encoder Specifications

Encoder Configuration

AttributeDetails
Code Key861108456
TypeXHI
Model861
Shaft TypeØ16 mm blind hollow shaft
Flange Type86-flange
Resolution1024 ppr
Power Supply9-30 Vdc
Output SignalHC-HTL
Connection TypeCable gland
Connecting DirectionRadial
Cable Gland DimensionM20 for Ø8-11 mm cables
Number of Channels6
Advanced Diagnostic SystemAvailable upon request
Torque Bracket120 degrees orientation

Mechanical Data

AttributeDetails
Operating Temperature-20 °C .. +85 °C
Ingress Protection ClassIP67 (IP66 at shaft inlet)
Vibration≤ 200 m/s²
Shock≤ 1500 m/s²
Shaft Load (axial/radial)100 N / 300 N
Rotational Speed Max6000 rpm
Shaft MaterialStainless steel with insulated peek insert
Cover MaterialAluminium (coated)
Weight1300 g

Electrical Data

AttributeDetails
Polarity ProtectedYes
Short Circuit ProtectedYes
Current Consumption60 mA at 24 Vdc (Max. 80 mA)
Output Load (max)± 40 mA
Output Frequency Max200 kHz
Cable Length Max350 m at 100 kHz
Channel Separation90° el ± 25° el
Dividing Error± 50° el
