ISA608 809645-01 Absolute encoder Profibus-DP
Inductive Shaft encoder, Absolute
- 58mm diameter
- Extremely robust design
- Shock and vibration protected
- Inductive scanning

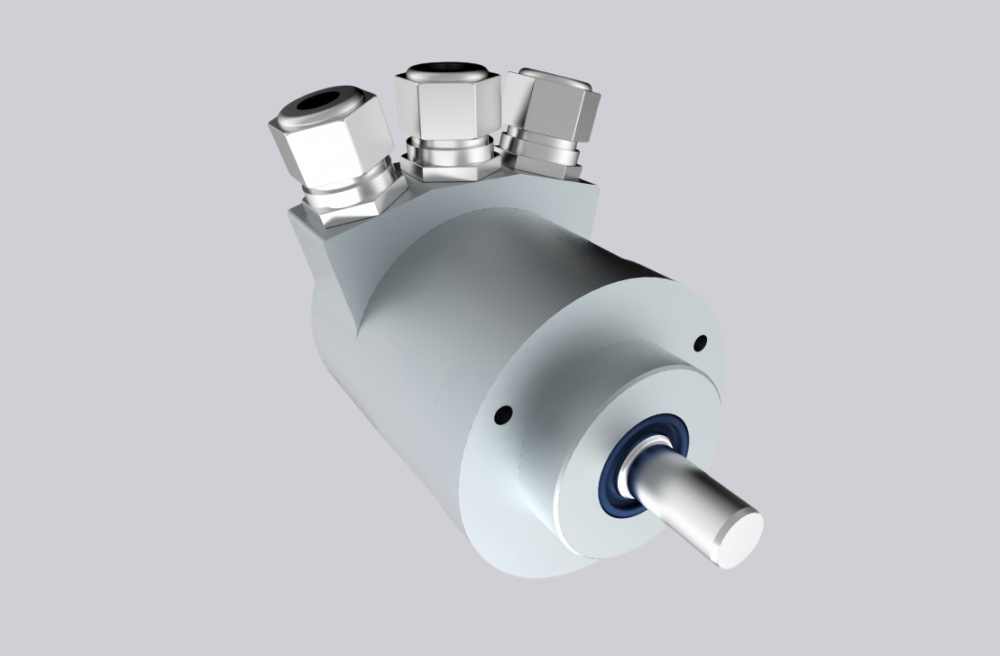

We provide 809645-01 encoder replacement solutions, the use of non-standard form for the production of alternative products, the application parameters of all 1:1. Perfect replacement of the prototype encoder, to solve the procurement and other challenges. The picture is the real photo of the replacement solution.
Encoder Specifications
Encoder Configuration
| Attribute | Details |
|---|---|
| Code Key | 60792719 |
| Type | ISA |
| Model | 607 Singleturn |
| Shaft Type | Ø10 mm round |
| Flange Type | Clamping flange (61sp-type) |
| Power Supply | 9-36 Vdc |
| Output Interface | PROFIBUS DP |
| Absolute Resolution | 19 bit singleturn |
| Connection Type | Cable gland |
| Connecting Direction | Radial |
| Node Address | Settable via DIP switches, 0…99 |
| Supported Profile | Encoder profile 3.062 and 3.162 v4.1 |
Mechanical Data
| Attribute | Details |
|---|---|
| Operating Temperature | -40 °C…+70 °C |
| Ingress Protection Class | IP 66 and IP 67 |
| Vibration | ≤ 300 m/s² |
| Shock | ≤ 2000 m/s² |
| Shaft Load (axial/radial) | 100 / 125 N |
| Rotational Speed Max | 12000 rpm |
| Shaft Material | Stainless steel |
| Cover Material | Aluminium (anodized) |
| Weight | 430 g |
Electrical Data
| Attribute | Details |
|---|---|
| Polarity Protected | Yes |
| Current Consumption (No load) | 95 mA at 24 Vdc |
| Absolute Accuracy | ± 100 arcsec |
| Baud Rate Max | 12 Mbit/s |
| Supported Functions | Preset, Scaling, Code sequence, Isosynchronous mode (only DPV2), Velocity (only DPV0 class 2) |
