M6C-5S3XH51-T005 Explosion-Proof Incremental Encoder Custom Solution

The M6C-5S3XH51-T005 can be supported through a custom compatible encoder solution for maintenance service, retrofit implementation, replacement work, and upgrade projects. Where the installed machine operates in a hazardous gas area and already uses an explosion-protected hollow-shaft encoder with conduit-box termination and low-temperature torque-arm mounting, the compatible version can be developed around the original shaft fit, signal structure, and field installation logic, with a typical production lead time of 30 working days.

Technical Overview of the M6C-5S3XH51-T005 Encoder

The M6C-5S3XH51-T005 belongs to the M6C explosion-protected hollow-shaft incremental encoder family for hazardous-duty industrial environments. This series is designed for CAT 2 (Zone 1) use and carries the marking II 2 G Ex de IIB T4 Gb, with IP66 enclosure protection and magnetoresistive sensing technology. Within the family structure, M6C-5 identifies the 1 1/8-inch hollow-shaft version. The platform supports one or two electrically independent and totally isolated outputs and provides incremental square-wave feedback through A, A-, B, B-, Z, Z- channels.

For this batch of models, the pulse count is to be treated as 1024 ppr. This specific model includes the 3 coded output-supply structure, while the model also includes the T connection code and 005 modification code. In the M6C coding table, T identifies a conduit box with terminal block, 3/4" NPT, and 005 defines the combined low temp + torque arm version. The M6C platform supports incremental output frequencies up to 250 kHz, and its electrical structure is intended for hazardous-area feedback service where both enclosure integrity and signal continuity must be preserved.

Industrial Integration Considerations

For this version, one of the main engineering checkpoints is environmental suitability together with the shaft-side installation concept. The 1 1/8-inch hollow shaft and torque-arm arrangement should be confirmed against the actual machine shaft, end float, and anti-rotation geometry. The M6C installation guidance states that the encoder must not be rigidly mounted and should use the intended hollow-shaft, clamping-collar, and anti-rotation bracket concept. The standard flexible anti-rotation bracket can tolerate ±0.1 inch shaft end float, which is important in retrofit work on larger rotating equipment.

Because this model includes 005, ambient temperature is also a primary review item. The M6C coding table defines 005 as low temp + torque arm, and the manual states that low-temperature versions can operate down to -40 °C instead of the standard -20 °C limit. In addition, the T connection style means conduit entry, enclosure sealing, grounding, and closure of unused openings should all be reviewed against the original hazardous-area installation practice before the compatible solution is finalized.

Custom Compatible Encoder Solution

For the M6C-5S3XH51-T005, a custom compatible encoder solution can be engineered to match the original explosion-protected installation concept as closely as possible. The compatible version can be aligned with the required 1 1/8-inch bore, 1024 ppr output, conduit-box termination concept, low-temperature operating requirement, torque-arm modification, and hazardous-area rating so that surrounding machine changes remain limited during replacement.

This is especially useful where the encoder is already installed in a Zone 1 environment exposed to lower ambient temperatures and where the existing conduit practice, shaft-side geometry, and anti-rotation layout must be preserved. In those cases, the practical objective is continuity in signal behavior, environmental suitability, and installation logic rather than only dimensional interchangeability.

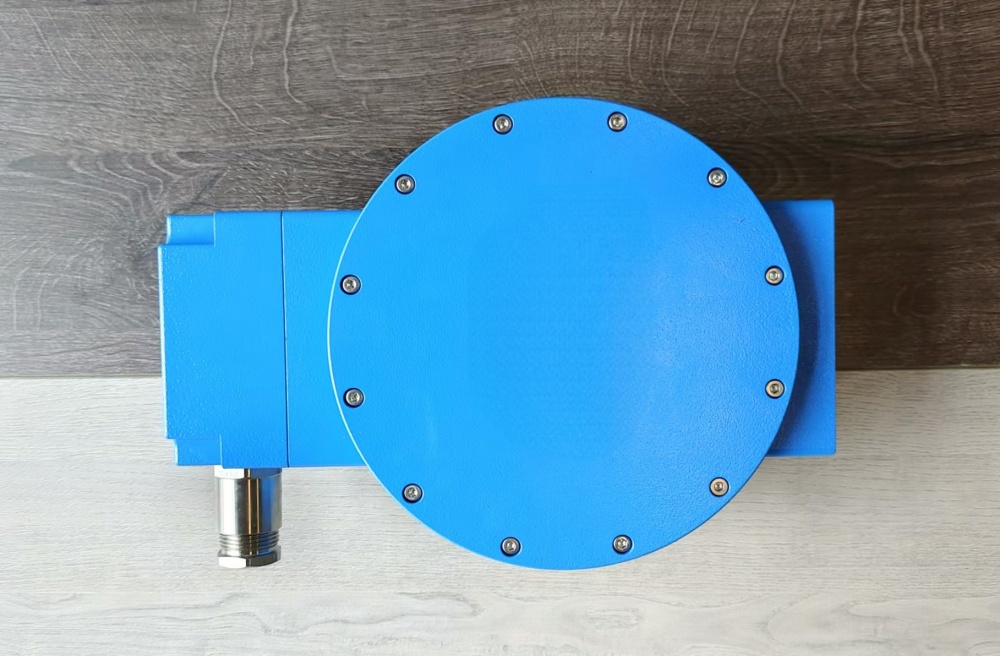

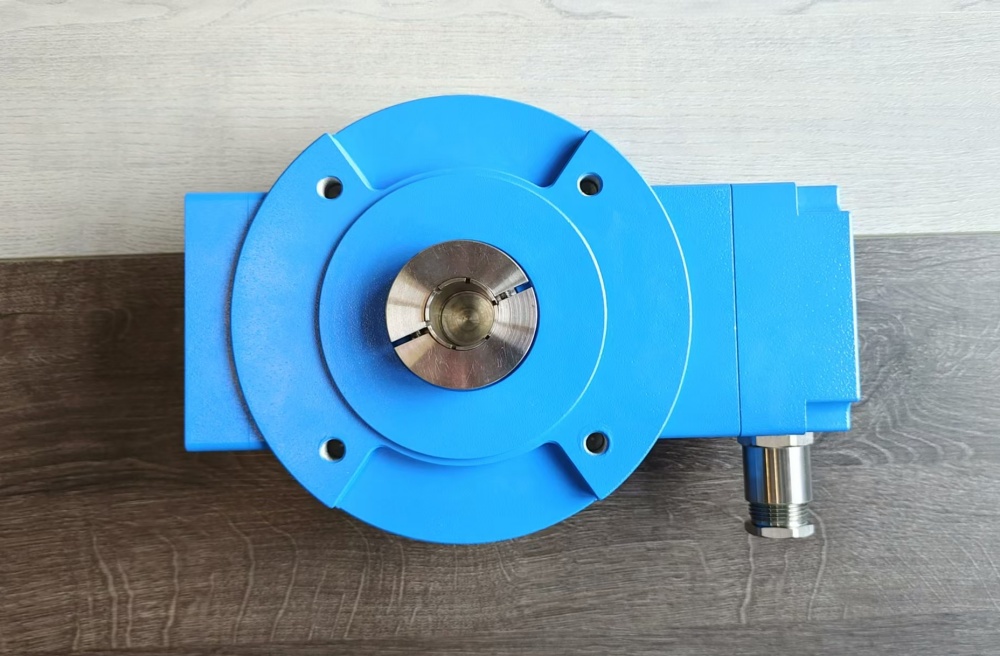

Custom Solution Photos

Lead Time and Custom Development

Typical production lead time: 30 working days.

Before production, the engineering review should confirm the shaft size, pulse requirement, output arrangement, low-temperature requirement, torque-arm modification, conduit-box connection method, hazardous-area installation conditions, grounding method, and controller input expectations. The complete coded structure should also be checked against the installed unit so the compatible solution can remain consistent with the actual field configuration.
