CMS582M-00003: Inquiry and Alternative Solutions for This Model

I'm MaxLee
1 year前

Today, we received an inquiry about an encoder, with the client looking for possible alternative solutions. The specific model in question is "CMS582M-00003."

The client provided only an image of the model, which indicates that it is a PROFINET communication protocol encoder with a resolution of 4096x8192. However, the client could not provide the relevant dimensional data. In such cases, we must search for related information.

Upon research, we found that this is an encoder with an outer diameter of 58mm and a blind hole size of 12mm. The power supply voltage is 10-30V, and the protection level is IP65. With this information, the parameters are essentially complete.

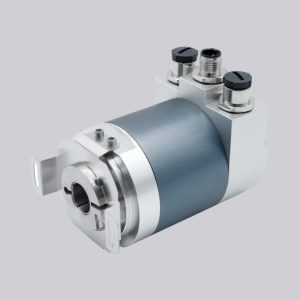

We began to plan alternative solutions based on these parameters, as shown in the following diagram:

CMS582M-00003: Inquiry and Alternative Solutions for This Model-I'm MaxLee

This is an encoder with a 58mm outer diameter, PROFINET communication protocol, a resolution of 4096x8192, and a hole diameter of 12mm, with consistent mounting dimensions. The only difference is that this is a side outlet encoder. The original model is an axis publication. The appearance method does not affect the use; it is merely a difference in the wiring method.

It can be essentially perfectly replaced. The application process of this alternative also requires a basic operation, which is to import the new GSD file. This completes the entire replacement work.

Today, I am making a note here for the convenience of those who may need it in the future.
