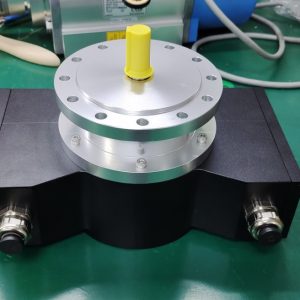

FG40KK-2048G-90G-NG Incremental Encoder Engineering Solution

A custom compatible encoder solution can be provided for the FG40KK-2048G-90G-NG for maintenance, retrofit, replacement, and upgrade projects. Where the installed machine depends on a dual-terminal-box encoder with defined incremental signal logic, the compatible version can be engineered around the original electrical structure and installation concept, with a typical production lead time of 30 working days.

Technical Overview of the FG40KK-2048G-90G-NG Encoder

The FG40KK-2048G-90G-NG is an incremental encoder for rotary motion measurement in industrial drive and feedback systems. The latest FG 40 manual confirms that the series supports standard square-wave pulse rates including 2048, with 12–30 V DC supply, a current-limited, short-circuit proof push-pull line driver with integrated impedance adaptation for 30 to 140 Ω lines, standard HTL output, optional 5 V TTL / RS422-compatible output, and a maximum frequency of 200 kHz.

In this model code, 2048G defines a 2048 ppr configuration, while 90G corresponds to the square-wave output structure with basic channel 0° (A) and pulse channel 90° (B), each with inverted signals. The NG code indicates a mechanically defined reference pulse with inverted signal. The type-code section also states that KK means 2 terminal boxes, used as a redundant version or with specific options, which makes this model structurally different from a single-box K version.

Industrial Integration Considerations

For this version, the main engineering value lies in controller-side compatibility with a binary-oriented pulse count. A 2048 ppr signal structure is often preferred in systems where counting, speed evaluation, or position processing is already organized around powers-of-two logic. During retrofit work, the receiving controller, drive input, or counter module should still be checked for input voltage compatibility, pulse-processing capability, shielding quality, and reference-pulse handling before the replacement is finalized.

Installation discipline also has a direct impact on long-term reliability. The FG 40 manual states that installation and commissioning must be carried out by skilled technical staff, and that a hammer or similar tool must not be used because of the risk of damage to the bearings or coupling. It also recommends threadlocker on fastening screws to prevent loosening. These points are especially relevant in service projects where the encoder is installed in a drive section exposed to vibration or repeated maintenance access.

Custom Compatible Encoder Solution

For the FG40KK-2048G-90G-NG, a custom compatible encoder solution can be configured to match the original machine interface as closely as possible. The compatible design can be aligned with the required 2048 ppr signal structure, the two-terminal-box arrangement, the defined reference-pulse logic, the required output level, and the existing installation conditions so that surrounding machine changes remain limited.

This is particularly useful where the original control system is already tuned to a 2048-based incremental feedback structure and where replacement needs to preserve the established commissioning logic. In those cases, the goal is not only to replace the encoder physically, but also to maintain continuity in signal behavior, wiring layout, and field serviceability.

Lead Time and Custom Development

Typical production lead time: 30 working days.

Before production, the engineering review should confirm the pulse count, output type, supply voltage, reference-pulse requirement, terminal-box arrangement, installation dimensions, controller input expectations, and field wiring conditions. Environmental conditions should also be checked in advance, because the FG 40 manual states that sealing and protection configuration affect permissible speed, breakaway torque, and temperature capability. The series supports IP65, IP66, and IP66/IP67 depending on sealing arrangement, with standard and special temperature ranges available.
